THS9001
SLOS426C – NOVEMBER 2003 – REVISED DECEMBER 2013
www.ti.com

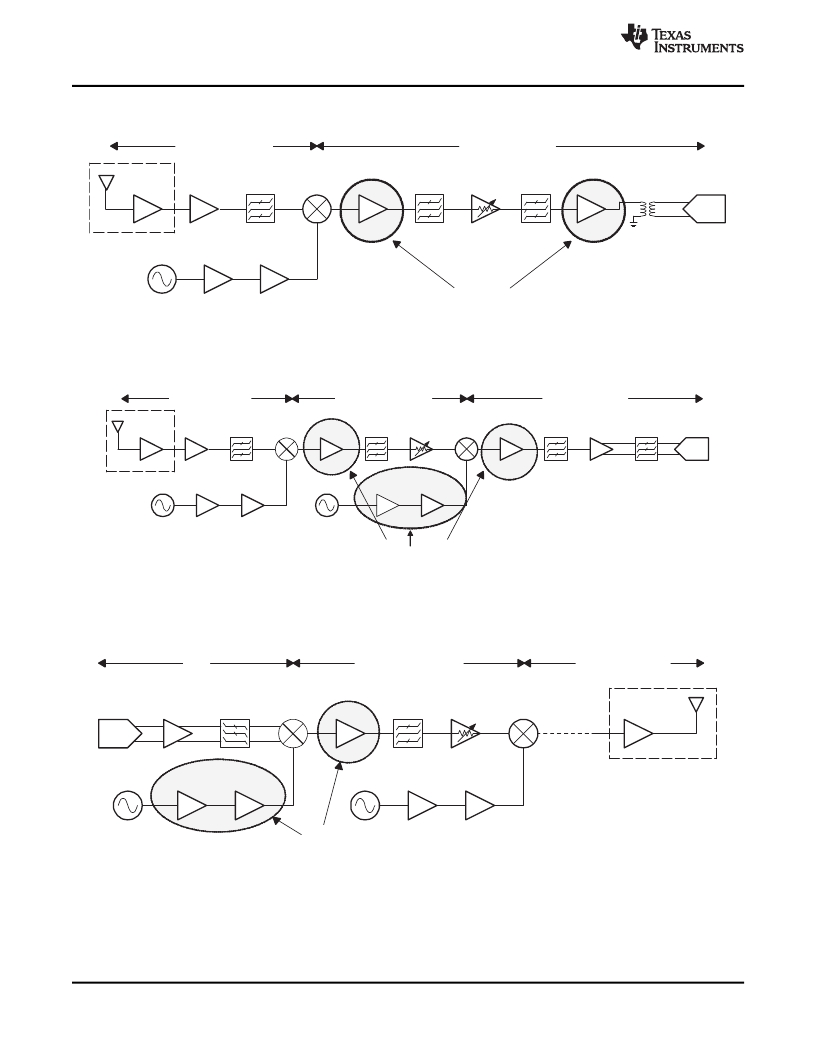

Figure 21 shows an example of a single conversion receiver architecture and where the THS9001 would typically
be used.
900 MHz ? 2 GHz
900 MHz ? 2 GHz
Image Rejection
Filter
IF Amp 1
IF Amp 2
LNA 1
LNA 2
Mixer
IF SAW
PGA
IF SAW
ADC
LO Drive
LO Drive
RX LO
Amp 1
Amp 2
THS9001
2x for Diversity
Figure 21. Example Single Conversion Receiver Architecture
Figure 22 shows an example of a dual conversion receiver architecture and where the THS9001 would typically
be used.
900 MHz ? 2 GHz
100 MHz ? 300 MHz
20 MHz ? 70 MHz
1st Mixer
2nd IF SAW 2nd IF
Amp2
LNA 1
LNA 2
Image Reject
Filter
1st IF Amp
1st IF SAW
PGA
2nd IF Amp1
2nd Mixer
Alias Filter
ADC
LO1 Drive LO1 Drive
RX LO 1 Amp 1 Amp 2
RX LO2
LO2 Drive LO2 Drive
Amp 1 Amp 2
THS9001
2x for Diversity
Figure 22. Example Dual Conversion Receiver Architecture
Figure 23 shows an example of a dual conversion transmitter architecture and where the THS9001 would
typically be used.
BB
100 MHz ? 300 MHz
1st IF amp
900 MHz ? 2 GHz
DAC
BB Amp
Alias Filter 1st Mixer
IF SAW
PGA
2nd Mixer
PA
RX LO1 LO1 Drive
Amp 1
LO1 Drive
Amp 2
RX LO2
LO2 Drive LO2 Drive
Amp 1 Amp 2
THS9001
2x for Diversity
Figure 23. Example Dual Conversion Transmitter Architecture
12
Submit Documentation Feedback
Product Folder Links: THS9001
Copyright ? 2003–2013, Texas Instruments Incorporated
